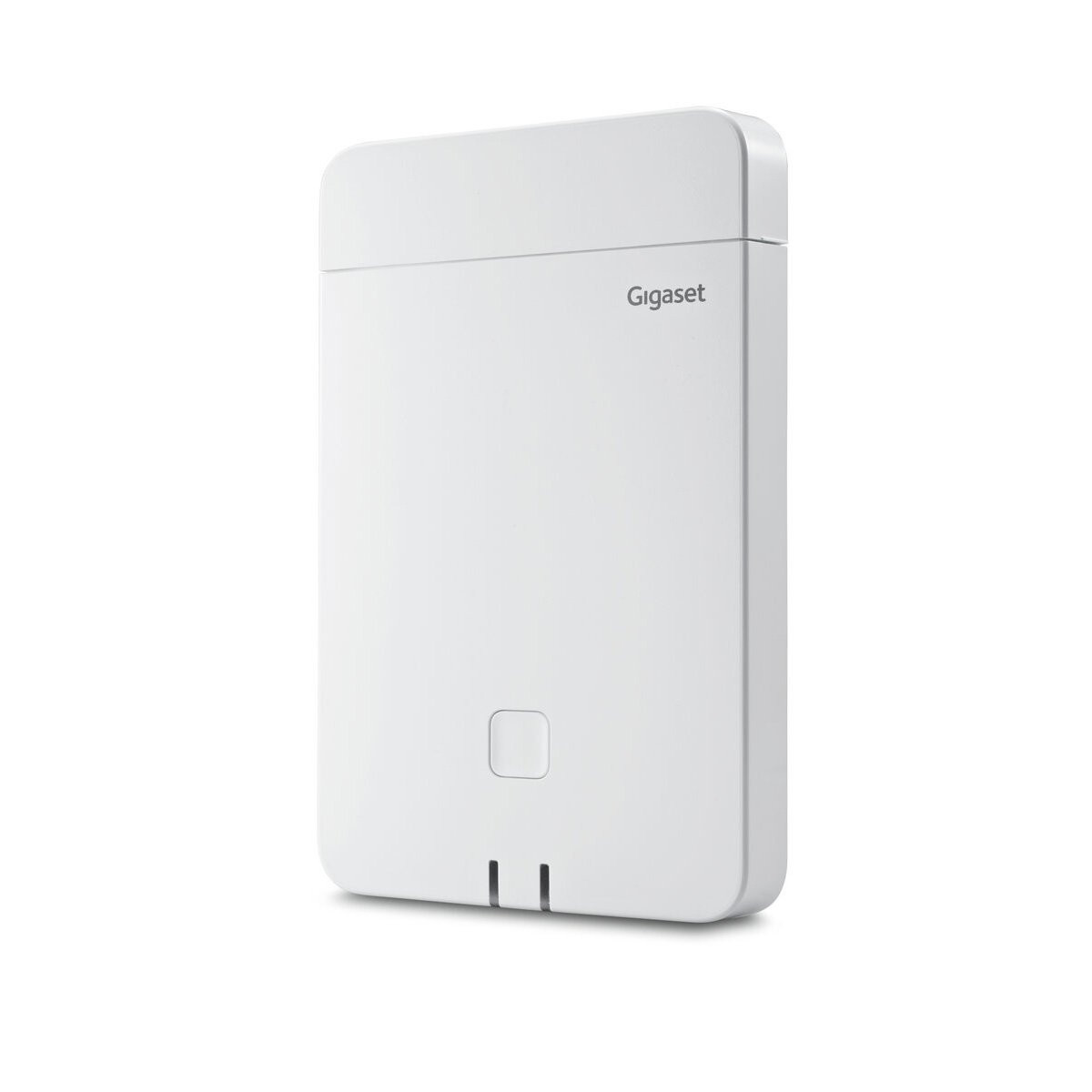

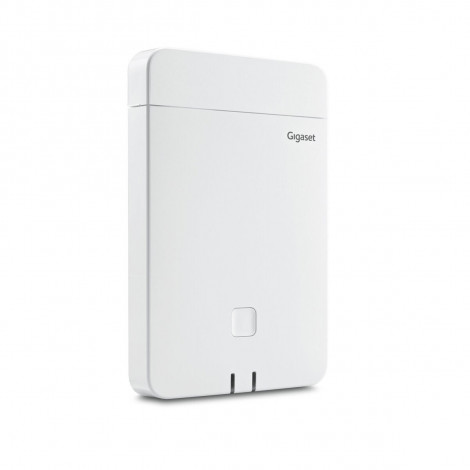

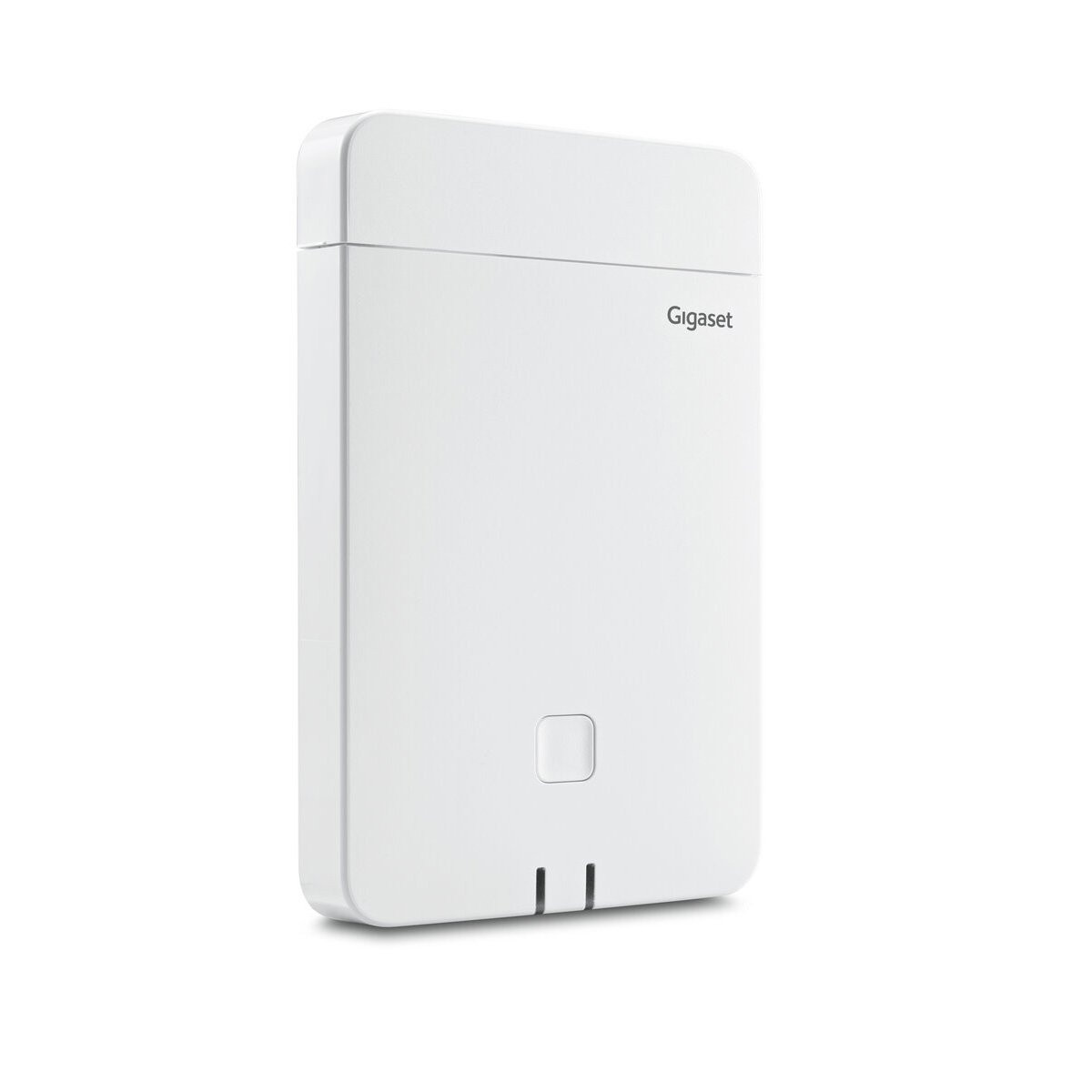

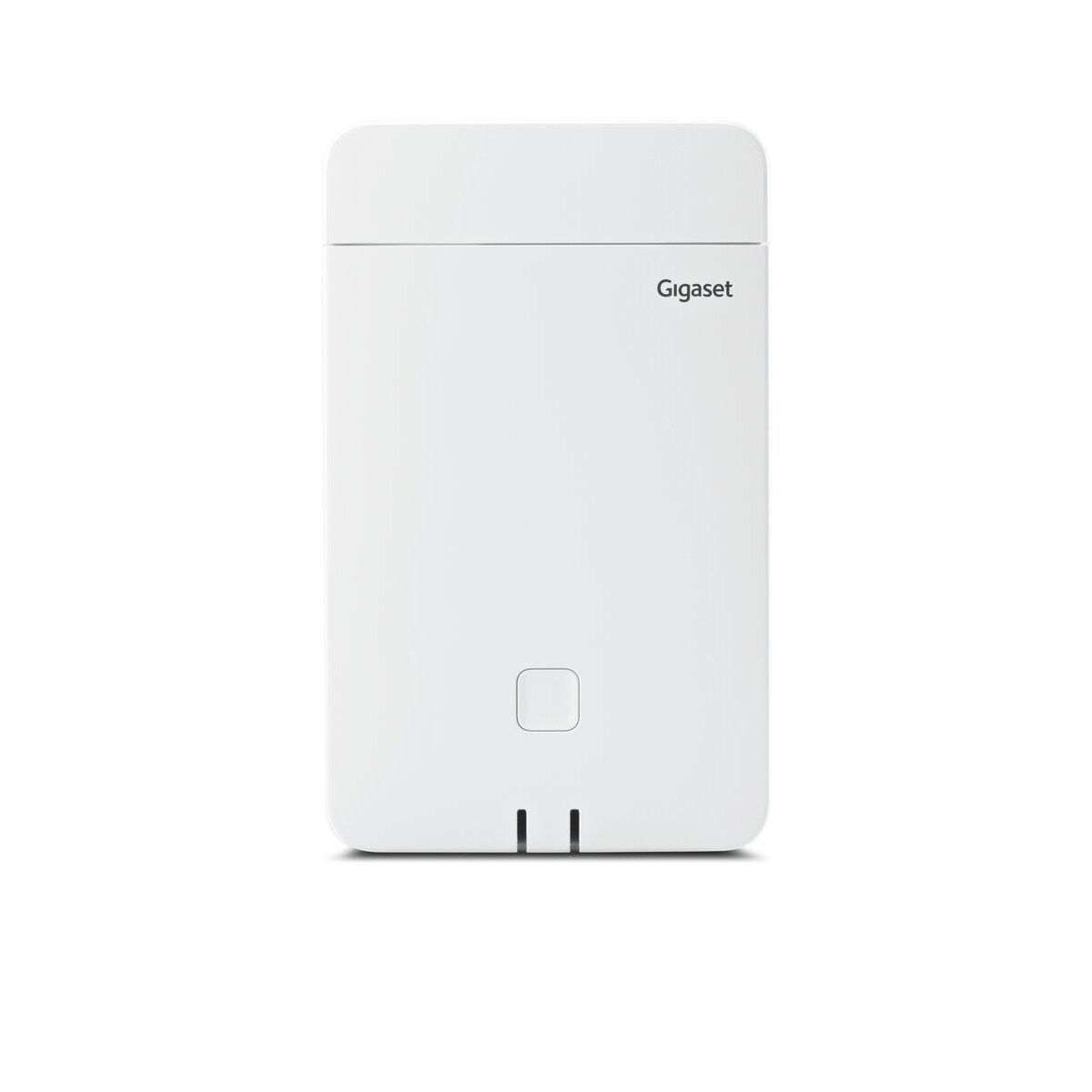

  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
  • Left front view of the Gigaset N770 IP PRO DECT IP base station
previous
next

Gigaset N770 IP PRO

The DECT IP multi-cell system for small to medium-sized businesses

The Gigaset N770 IP PRO is the first choice for cordless telephony for up to 100 handsets.

An N770 IP PRO in the role of integrator+DECT manager manages up to 20 N770 IP PRO DECT base stations. This enables telephony in a large coverage area with seamless call handover.

Up to 30 parallel calls guarantee a high level of operational readiness in your business environment.

Calls are secure thanks to SRTP. Contacts are always available in the central phone book of the N770 IP PRO, or can be connected via LDAP or XML. With the ability to create their own xhtml applications, users can access and control business-relevant data.

The Gigaset N770 IP PRO is compatible with a wide range of on-premise and cloud telephone systems and is easy to set up thanks to auto-provisioning. The range of functions is rounded off by support for Alarm, Messaging and Location (AML).

Find a partner

Gigaset Professional is distributed exclusively via qualified business partners.

Our partners are IT and telecommunications distributors and value added resellers (VAR’s) as well as business systems providers. Our partners advise, sell, install and offer additional services regarding Gigaset Professional.

Description

Made for growth – scalable multi-cell technology

With the Gigaset N770 IP PRO, your communication system grows with your business. Up to 20 base stations can be combined into a multi-cell network – for seamless handover and roaming throughout the office.

Gigaset N770 IP PRO as a scalable multi-cell network with up to 20 stations
Gigaset N770 IP PRO with six handsets, up to 100 users and 30 calls

Full team performance – up to 100 users, 30 simultaneous calls

The Gigaset N770 IP PRO supports up to 100 users, handsets and SIP accounts. With up to 30 simultaneous calls, it ensures consistently high availability even during busy periods. The base station is compatible with many IP-based telephone systems and virtual telephone systems from well-known manufacturers. All professional Gigaset DECT handsets of the current generation are compatible and can be easily integrated.

Future-proof functionality – Alarm, Messaging, Location

For demanding application scenarios such as industry, healthcare or large offices, the Gigaset N770 IP PRO offers licence-based support for Alarm, Messaging and Location (AML) – for example, for security, emergency calls or location determination. Thanks to a central phone book (only for small/medium-sized systems), integration of external directories (LDAP, XML, Remote, Broadsoft, 3CX, xHTML) and encrypted contacts, your team always stays connected.

Gigaset N770 IP PRO with AML functions: alarm, messaging and location
Gigaset N770 IP PRO with security symbol for encryption and setup

Security & quick setup

The Gigaset N770 IP PRO relies on state-of-the-art security standards: DECT and SIP communication are end-to-end encrypted (SRTP/SIPS/TLS/LDAP(S)/HTTPS). Both "Sync over the Air" and "Sync over LAN" are available for synchronisation between the base stations. Thanks to zero-touch auto-provisioning, setup is quick and easy. Firmware updates, configuration and maintenance are simple and secure – even for larger, distributed infrastructures.

Flexible, compact & efficient

The Gigaset N770 IP PRO impresses with its compact design and can be used flexibly in any small to medium-sized business – whether in industry, healthcare or large offices.

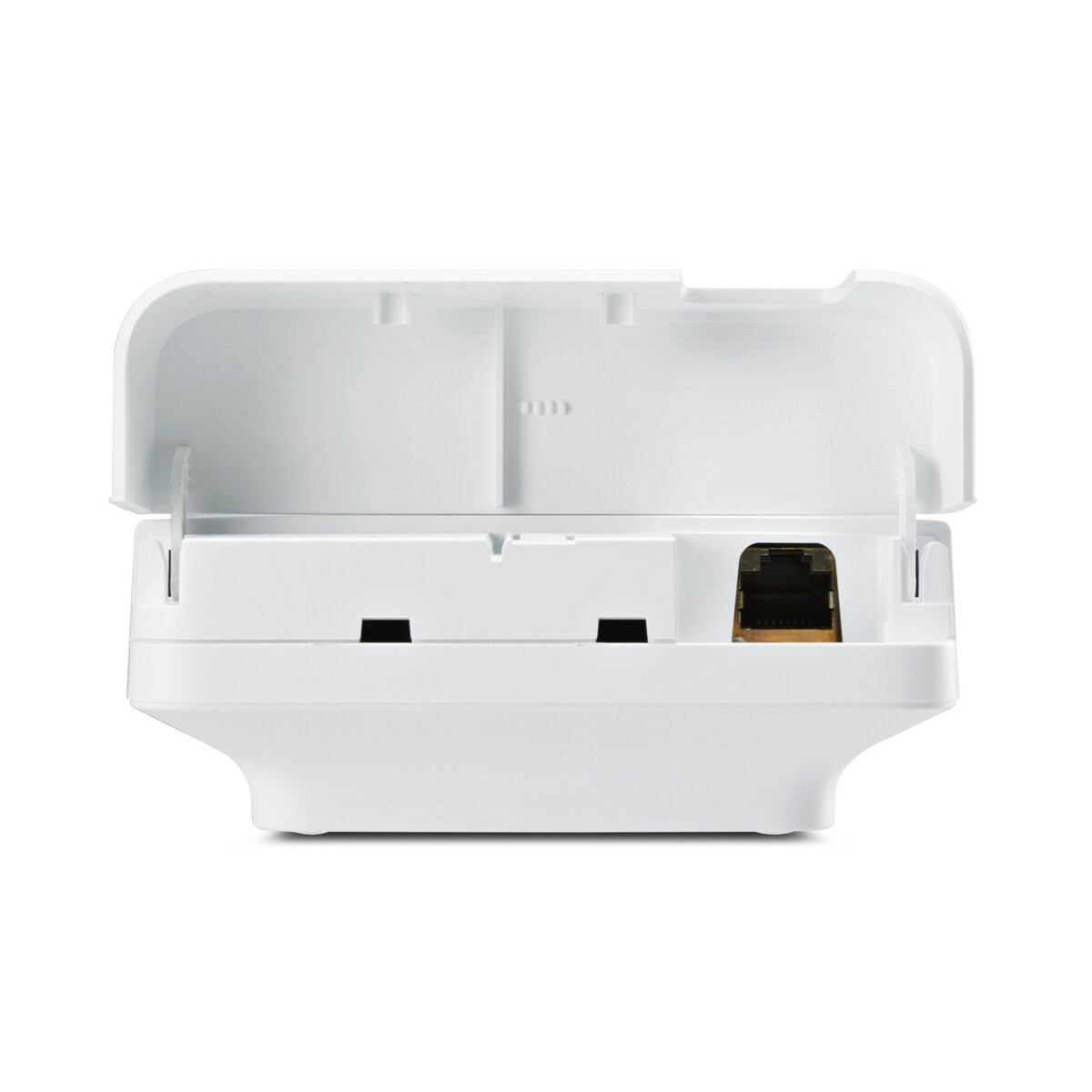

The multi-cell can be mounted on the wall or ceiling to save space. Power is conveniently supplied via Power over Ethernet (PoE), with a separate power supply unit available as an option. Installation is quick and easy, even for multiple base stations.

Gigaset N770 IP PRO for flexible use in industry, healthcare and offices
Content Tile - Image - View 1

Further advantages at a glance

  • Autoprovisioning:
    Fastest commissioning via IPUI provisioning – for particularly simple and efficient setup.
  • Security & encryption:
    Secure calls thanks to modern standards such as RTP, SIPS and TLS – tap-proof, even in the cloud. Server location and redirect in Germany.
  • Easy installation & configuration:
    Intuitive setup and quick configuration ensure a smooth start.
  • Licence model:
    Transparent one-time licences for AML handsets and infrastructure – no hidden follow-up costs.
  • Central phone book:
    Central, encrypted phone book with LDAP(S) support and company-wide access.

Made in Germany – for the highest quality standards and reliable service.

Technical details

Specifications

General settings
Article name
Gigaset N770 IP PRO
Products
IP DECT multicell system
Yes
System features
Max. number of base stations
20
Max. number of handsets
100
Max. number of parallel calls
30
Device features
Cordless standards
DECT | DECT-GAP
Max. number of base stations
20
Max. number of handsets
100
Max. number of parallel calls
30
Max. number of parallel calls per base
10
Housing
LAN Port with Power-over-Ethernet
Yes
Power connector
Yes
Power supply (available as accessory)
Yes
Phonebook / Dialling
Central phonebook (number of entries)
2.000
Max. number of external LDAP(S) phonebooks
10
Search function and reverse lookup
Yes
vCard support
Yes
CLIP/CNIP
Yes
SIP MWI
Yes
Special features
uaCSTA
Yes
xHTML applications
Yes
Autoprovisioning
Yes
Sync over LAN
Yes
Codecs
G.711 a-law / μ-law | G.722 | G.729a
Quality of Service
Yes
Platform features
Call Transfer: Attended, unattended, semi-attended, blind
Yes
Call Waiting
Yes
Call Forwarding
Yes
Group Pick-up
Yes
CLIR
Yes
Applications
Alarm, Messaging, Location
Yes
Microsoft Teams
Yes
Service features
Syslog
Yes
Virtualisation Tool
Yes
Command Line Interface
Yes
Save and Restore
Yes
Security features
Transport Layer Security (TLS)
Yes
Secure Real Time Transport Protocol (SRTP)
Yes
SIP
Yes
SIPS
Yes
HTTP
Yes
HTTPS
Yes
Dimensions / Specs
L x W x H in mm
180 x 110 x 42
Weight in g
220
Wall mountable
Yes
