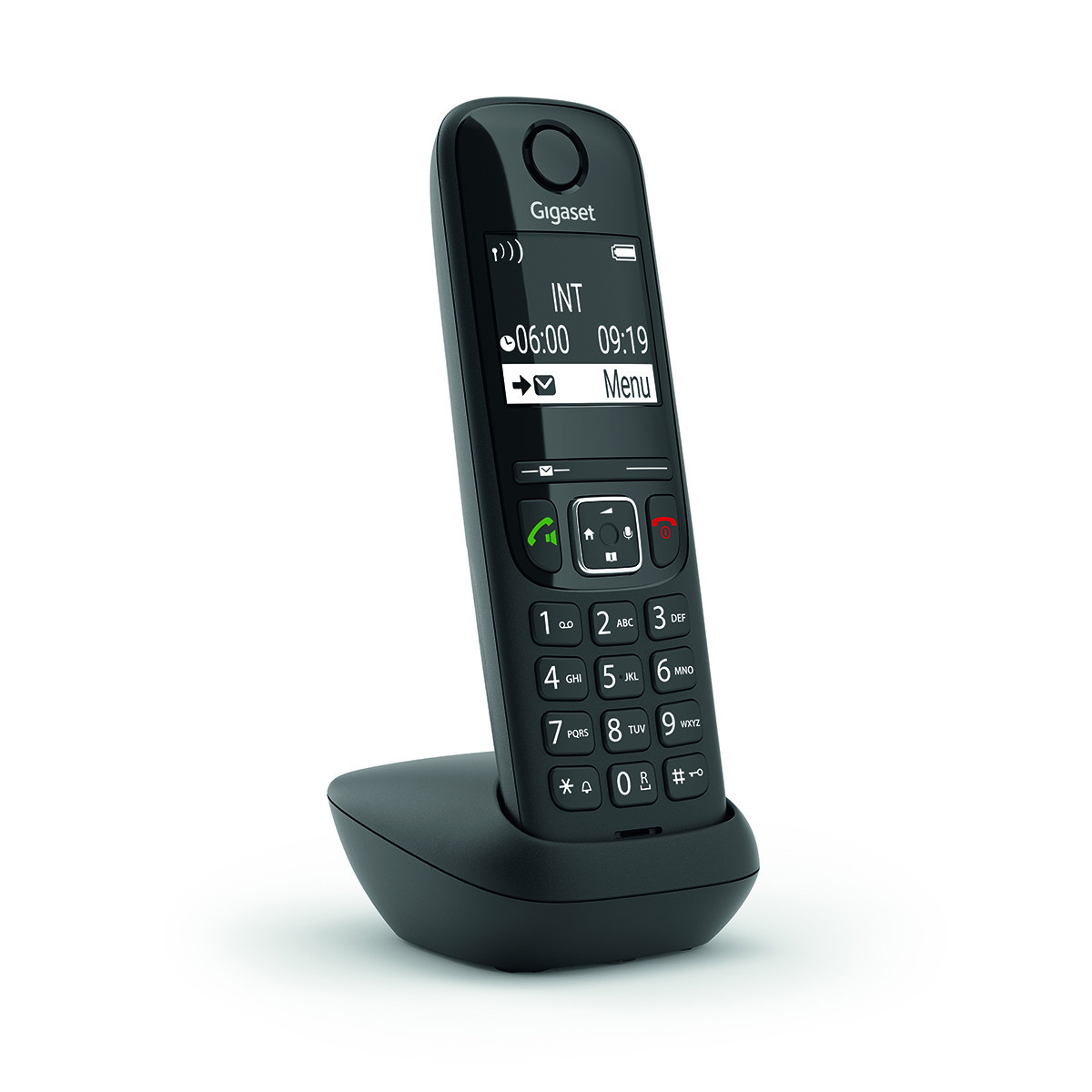

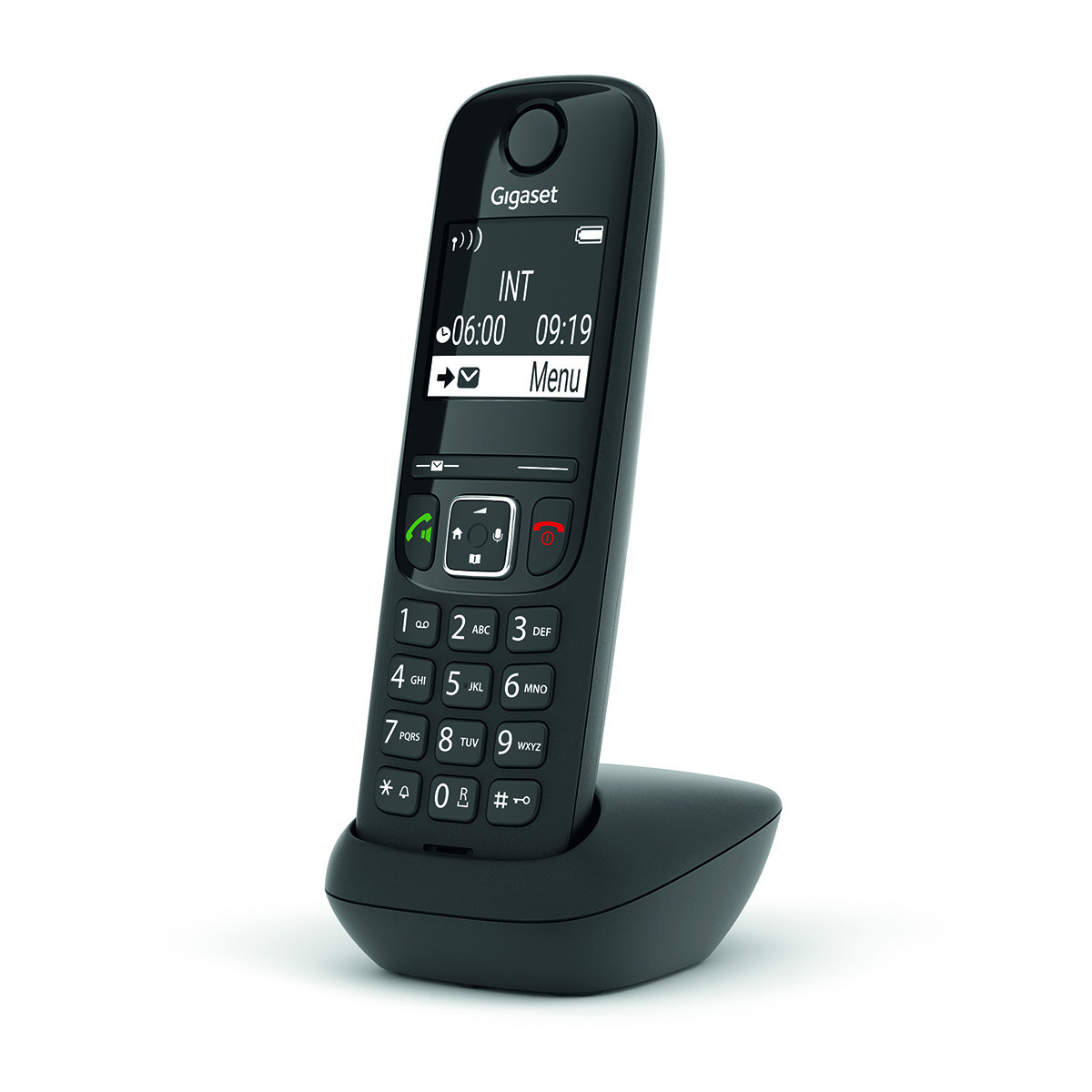

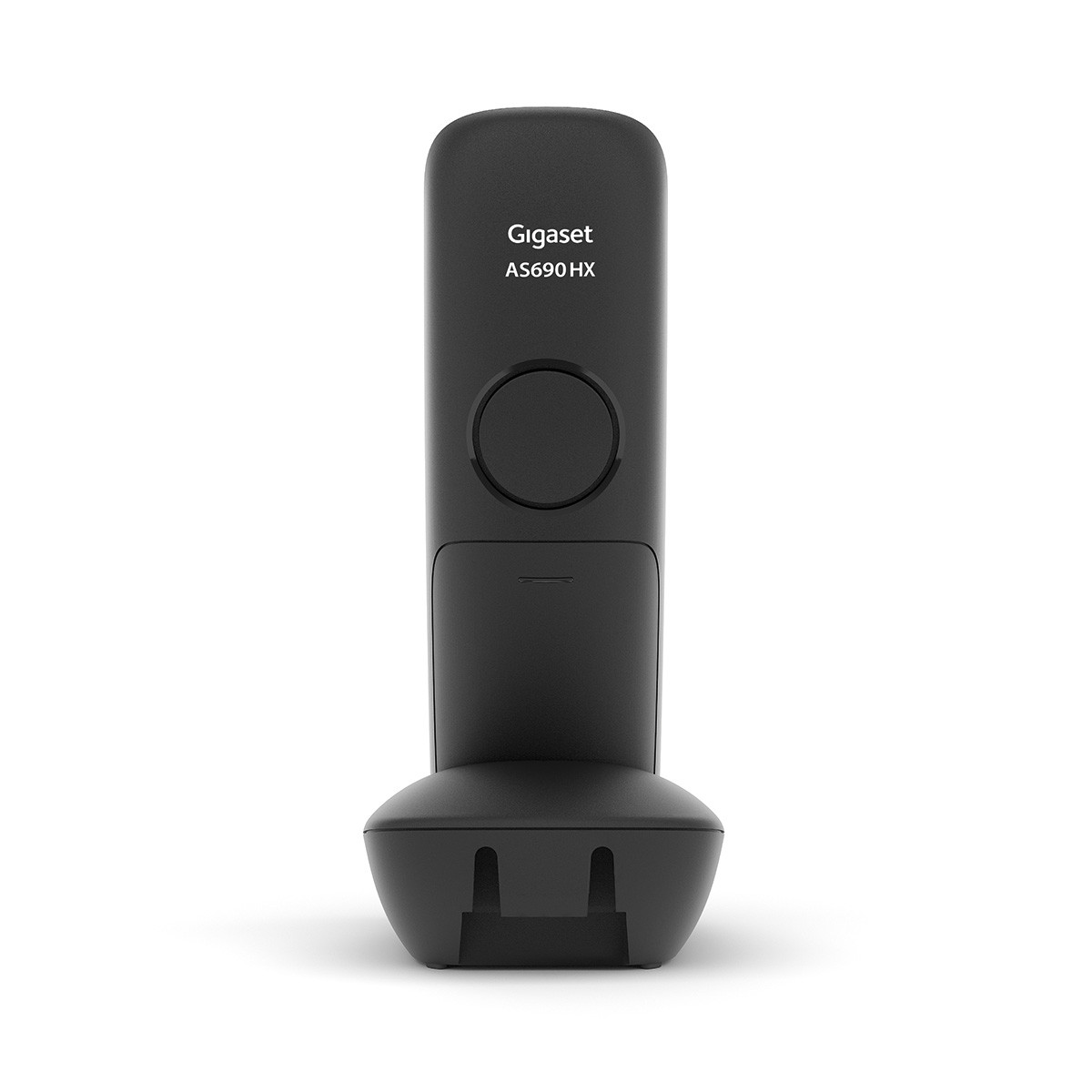

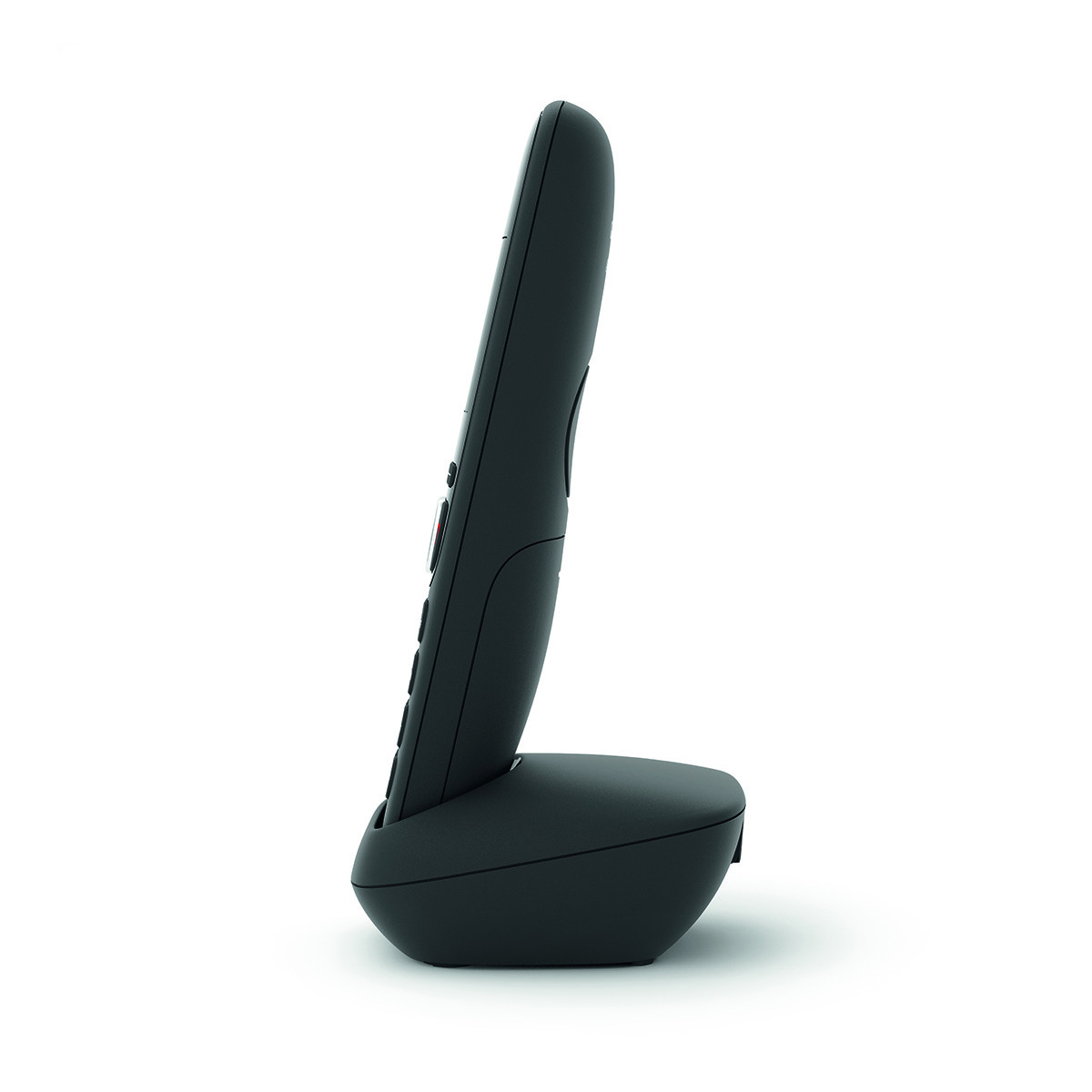

Gigaset AS690HX

Please ask your local dealer for complete details regarding price and availability.

Reliable quality for daily communication.
  • Universal handset to supplement the following:
    • Gigaset DECT base stations
    • DECT/GAP telephone base stations of other manufacturers
    • DECT/GAP routers (e.g., AVM FRITZ!Box)
    • Routers with DECT CAT-iq 2.0
  • Large black-and-white graphic display, illuminated, with high contrast
  • Handsfree talking in best sound quality
  • Call block function for up to 32 numbers
  • HD Voice with selectable sound profiles
  • Telephone book for up to 150 names and numbers with
  • Ergonomic keypad made of high quality material
  • Long talk and standby time of up to 12 and 180 hours
Description

Highly compatible with most routers - so it's truly versatile

Phone calls are becoming digital: Almost all connections are now IP based, so most people are already making calls over the Internet. There are many advantages to this, such as excellent HD sound quality, the ability to connect to three phone numbers at a time and being able to conduct multiple conversations simultaneously. You can enjoy all of these features with the universal Gigaset HX cordless handsets. As they're compatible with all DECT/CAT-iq-enabled routers, such as FRITZ!Box or Telekom Speedport, they're incredibly versatile - so you can carry on using them even if you change your router.

HD Voice and hands-free mode - so communication can be enjoyable

What's your favourite way to call someone? Do you prefer to speak directly into the handset to keep your calls private, or are you a fan of hands-free mode so others can join in with the conversation and so that you can get on with other tasks? The Gigaset AS690HX lets you decide. No matter which model you choose, you'll always get crystal-clear sound quality with HD Voice. Adjustable sound profiles and the certified quality standard mean conversations sound like they're happening face-to-face and muffled speech is a thing of the past.

Block unwanted callers - so you're only disturbed when you want to be

The Gigaset AS690HX lets you switch off when you need to. With call protection, you can easily ignore unknown callers, anonymous callers from a withheld number or specific numbers. Manually enter up to 32 unwanted phone numbers in the blacklist or transfer numbers directly from the call history log. If the blacklist is activated, any phone calls from numbers in the list are either rejected or only appear on the display. With the additional time control option, you can also specify when you want the handset to ring - and when you want a bit of peace and quiet.

Comfortable and intuitive handling - for maximum comfort while you talk

If you want to challenge yourself, do a crossword puzzle - but if you're looking for something more relaxing, choose the simple, intuitive handling of a Gigaset AS690HX. The ergonomic keypad with illuminated keys makes it easier to dial long numbers. The large, high-contrast, black-and-white graphic display with backlight makes it easy to keep track as you navigate effortlessly through the device's simple menu.

Large phone book and long talk time - for a phone you can count on

No matter how stressful life gets, you can always rely on one thing: your phone. 180 hours of standby time mean you're always reachable, and the 14 hours of talk time mean you won't miss out on what's important. The phone book can store up to 150 names and numbers, so all of your contacts are at your fingertips. And if you don't make it to the phone in time, the call history log makes it easy to call back in the press of a button - the last 25 numbers are clearly displayed.

Simply log on to the router - so your phone is always close by

Looking for a phone that's always within easy reach, wherever you need it - in the bedroom, kitchen or hallway? It's all possible with the Gigaset AS690HX. The handset directly logs in to the DECT feature on your router, so you no longer need a base station and can keep your device anywhere in the room for even more flexibility.

If you want to expand your landline system with additional handsets, the Gigaset AS690HX can also be connected to a telephone base station.

Always environmentally friendly - and radiation-free thanks to ECO DECT

Like all Gigaset cordless phones, the Gigaset AS690 series is equipped with environmentally friendly ECO DECT technology. This means that the phones are radiation-free in standby mode, even when you're using multiple handsets, provided that the base and all connected handsets support ECO DECT too. During a call, the transmission power automatically adapts to the distance between the handset and the base. The smaller the distance between the handset and the base, the lower the radiation. For maximum DECT range, you can disable ECO DECT mode at any time.

Technical details

Specifications

General settings
Article name
Gigaset AS690HX
General features
Connection
Analog | ISDN | VoIP
DECT Standards
DECT | GAP | CAT iq 2.0
ECO DECT
Autom. reduction of transmission power | Radiation-free in standby mode | Low energy consumption
Features
Big Buttons
Additional features
Standby time up to (h)
180
Talk time up to (h)
12
Phonebook # entries (name / number)
150
Individual ringertones for VIP entries
Yes
Room monitoring (Babyphone)
Internal (second handset required) | External
Direct dial (Babycall)
Yes
Alarm function
Yes
Range warning tone
Yes
SMS function
Yes
Call block function
Yes
Blacklist (number of entries)
32
Anonymous call suppression: Calls without CLIP number are only indicated visually
Yes
Day / night mode: Timed ringtone deactivation on handset
Yes
Optical call signaling
Illuminated display | Flashing send key
Number of Expandable Handsets
1
Free internal calls
Yes
Phone-/Adressbook-transfer internal via DECT (handset to handset)
Yes
Internal transfer of external calls, conference circuit, call back
Yes
Audio features
Sound Quality / Accustic Features
HD Voice (CAT-iq certified) | HD Voice (wideband voice)
Handsfree talking
Convenient hands-free talking (full duplex quality)
Handsfree talking handset / base
Handset
Adjustable Volume
Via Menu
Number of ringtones
25
Display features
Display Type
Alphanumeric b&w illuminated
Dimensions (H x W mm)
34 x 36
Diagonal spread (inch)
2.0
Resolution (px)
96 x 64
Jumbo Fonts
Yes
Display of caller
Display of caller’s number (CLIP)
Multilingual menu (several display languages)
Yes
Time / Date displayed
Yes
Number of languages
21
Keypad features
Illuminated Keypad
Yes
Easy handling with navigation key
Yes
Message indicator key
Yes
Dimensions / Specs
Handset, H x W x D in mm
155 x 49 x 28
Handset, weight incl. Accu in g
119
Charger, H x W x D in mm
38 x 70 x 77
Charger, weight in g
36
Accu Type
2 x NiMH AAA
